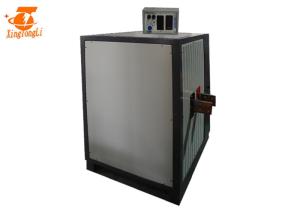

24 v Igbt Variable Dc 3 Phase Power Supply For Copper / Zinc Electroplating

Name: 24 v Igbt Variable Dc 3 Phase Power Supply For Copper Zinc Electroplating
Brand: xingtongli
Price: 1 USD

Wholesale 24 v Igbt Variable Dc 3 Phase Power Supply For Copper / Zinc Electroplating from china suppliers

Brand Name : xingtongli

Model Number : GKD24-2000CVC

Certification : ISO CE

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 150 units/month

Delivery Time : 10~18 work days

Packaging Details : Single wooden case packing size:780*610*580mm Weight:100kg

color : gray

input voltage : 220v

phase : 3 phase

output voltage : DC 0~24V adjustable

output current : DC 0~2000A adjustable

size : 820*780*940mm

weight : 200kg

control : remote control with 6 meter control wire

cooling : air cooling

application : copper electroplating

Contact Now

high frequency 24v igbt variable dc power supply for copper ,zinc electroplating features:

Small size, light weight electroplating power supply: SCR rectifier size and weight only 1/5-1/10, very convenient for you to plan, expand, move, maintenance and installation.
Energy-saving effect: as the electroplating power supply USES high-frequency switching transformer, the conversion efficiency is greatly improved. Generally speaking, the efficiency can be improved by more than 10% compared with the SCR rectifier equipment, and the efficiency can be improved by 30% or more if the load rate is less than 70% compared with the SCR.
High frequency switching power supply AC to DC rectifier adopts air cooling/water cooling design, easy to install. With remote control device, simple operation. Can switch off the machine when loading, reduce cumbersome procedures of adjustment.

Electroplating power supply Specification and parameter

input voltage	220v 3 phase 50/60hz
Output voltage	0~24v adjustable
Voltage stability	0~2000a adjustable
Current stability	≤1%
Ripple factor	1%-2%
efficiency	≥90%
weight	200kg
dimension	820780940mm
Stabilization mode	Current stabilization/Voltage stabilization (Switchable easily)
Adjustment range	Voltage/Current from 0-100% continuously adjustable within rated range
Cooling system	Air cooling
Control method	local control/remote control/plc control
Display contents	Voltage meter/Current meter/Working/Over temp/Error,
Protection method	Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc..
Operating temperature	-20-50℃
Ambient temperature	-30-65℃
Ambient humidity	≤90%

24 v Igbt Variable Dc 3 Phase Power Supply For Copper / Zinc Electroplating

Cabinet:

high frequency water cooled zinc plating igbt power supply 18v 3000a cabinet adopts magnetic cut links, reduce eddy current losses, and cabinet as a whole spray painting

Structure:

Reasonable structure design, isolated the inverter part and , rectification part , convenient to disassemble and maintenance

Radiator:

radiator capacity expanded 1.5 times,make sure better cooling effect

switch control way:

adopt full bridge phase shifting soft switch,reduct IGBT loss,save engergy

Main transfadopts

high frequency water cooled zinc plating igbt power supply 18v 3000a amorphous core,increase transformer efficiency,reduct the transformer temperature rise,cut the rectifier weight,improve the power supply stability, reliability

Core & Schottky diode:

core capacity expanded 1.5 times

schottky diode expands 4 times

Board :

high frequency water cooled zinc plating igbt power supply 18v 3000a all control boards did anticorrosion treatment with imported three defense lacquer

IGBT:

3high frequency water cooled zinc plating igbt power supply 18v 3000a IGBT capacity expanded 3 times,make the power supply more reliable

24 v Igbt Variable Dc 3 Phase Power Supply For Copper / Zinc Electroplating

1, Placing rectifier and keep the body stability; ensure good ventilation.

2, Checking anodizing rectifier out cover if loosing.

3, Connecting shell to ground to prevent static electricity.

4, Conecting the AC input wire

5, Connecting the DC output copper bars

6, Connecting the rectifier remote control box,if local control ,skip this step

7, Turn on air switch, then the fan starts to rotate and the power indicator light.

8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting.

9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly.

10, Disconnect the air switch, turn off the rectifier
